45+5 uF 45/5 MFD ±6% 370V/440VAC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

LGQF-LL

About this item

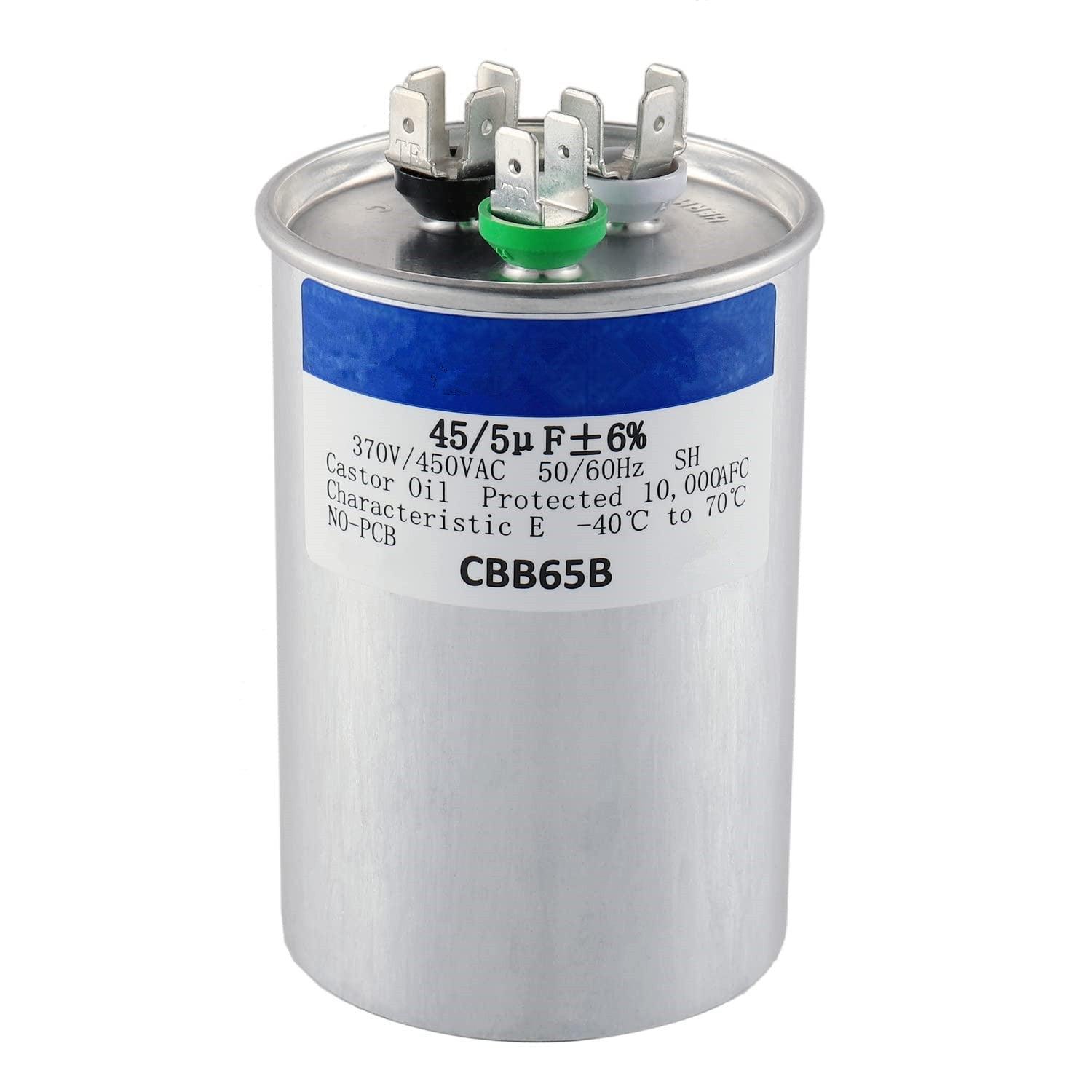

45+5uF ±6% 370V/440V CBB65B Dual run circular start capacitor

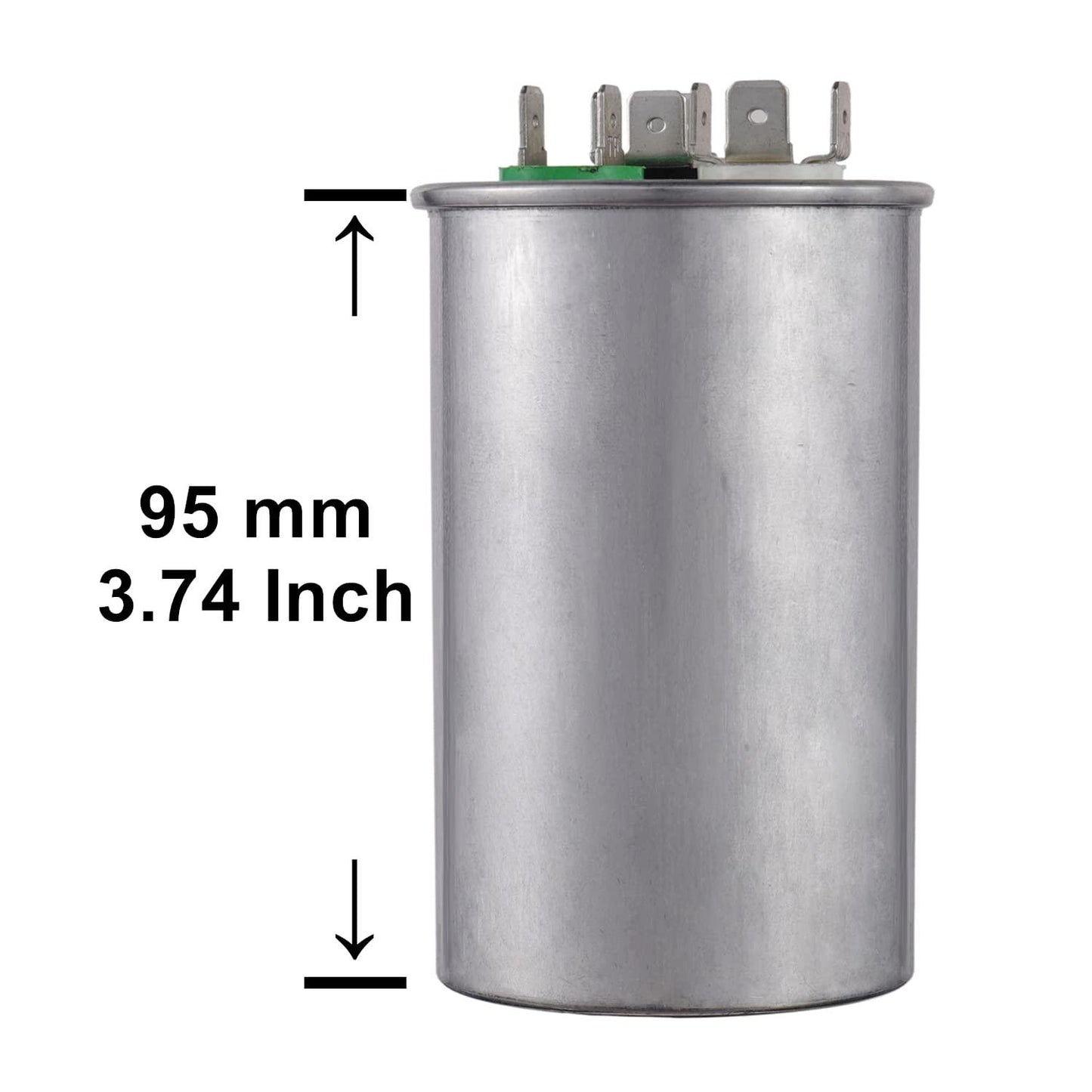

Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch)

Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ ，Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262

Product Description
Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65B（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
